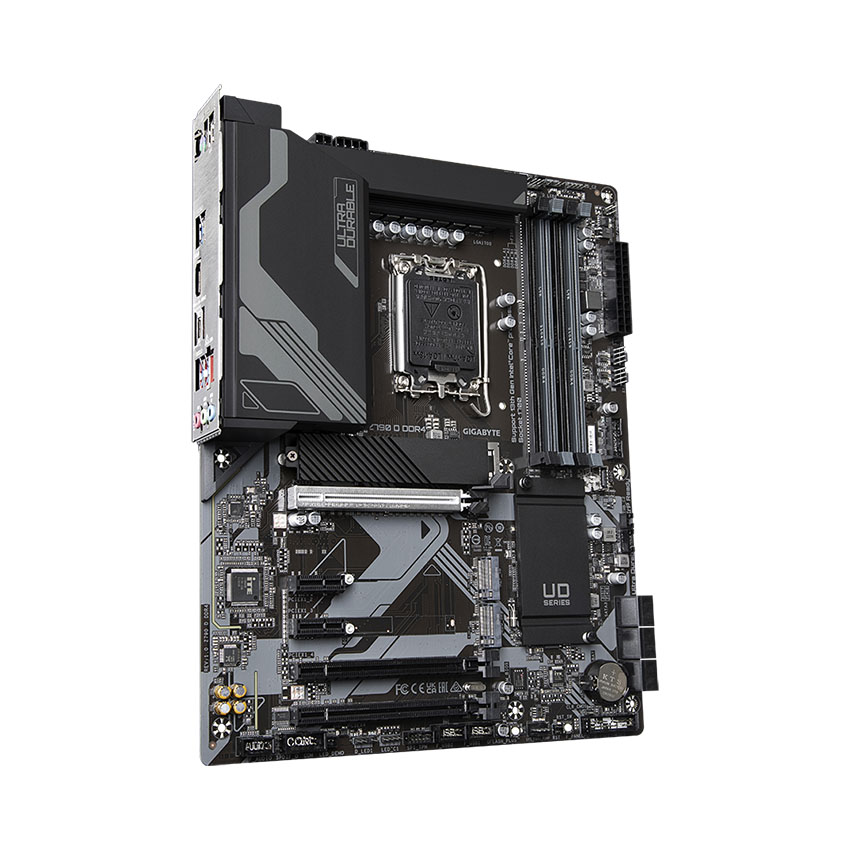

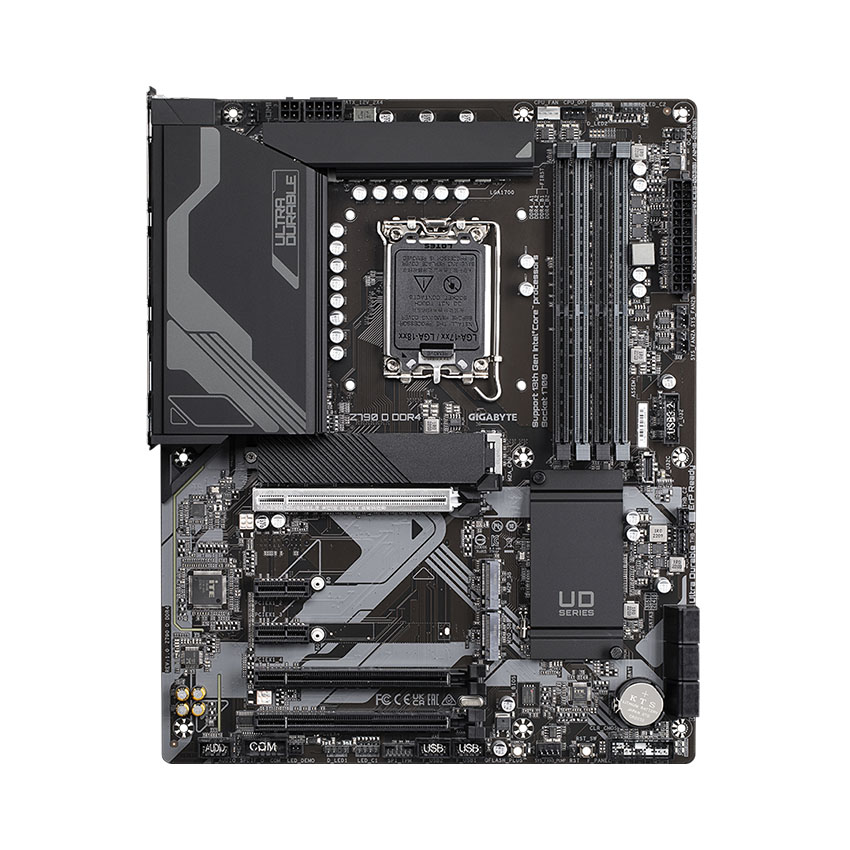

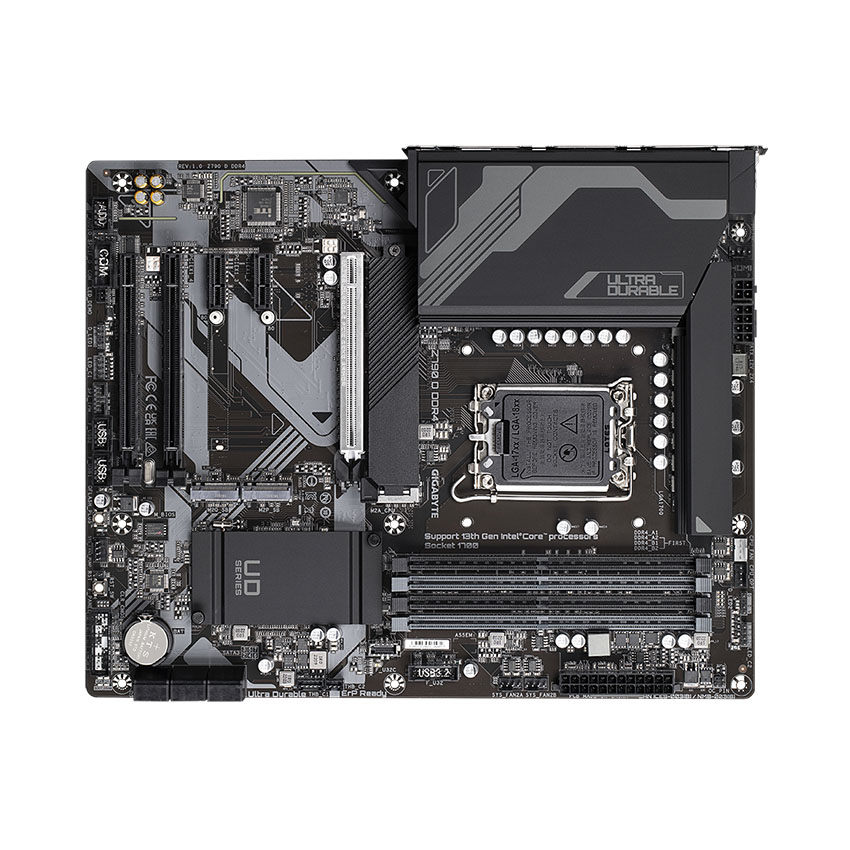

Mainboard Gigabyte Z790 D DDR4

(0 lượt đánh giá)
Lượt xem: 84
Mã hàng: Z790D_DDR4
-16%
https://www.tpluscomputer.vn/Mainboard Gigabyte Z790 D DDR4
https://www.tpluscomputer.vn/mainboard_gigabyte_z790d_ddr4_2__2_
https://www.tpluscomputer.vn/mainboard_gigabyte_z790d_ddr4_2__3_
https://www.tpluscomputer.vn/mainboard_gigabyte_z790d_ddr4_2__4_

Đặc điểm nổi bật:

Hỗ trợ CPU Intel thế hệ thứ 12, 13, 14

Socket: LGA1700 , Chipset: Z790

Hỗ trợ RAM: 4 khe DDR4, tối đa 128Gb

Chuẩn mainboard: ATX

Bảo hành: 36 Tháng

4,990,000đ

5,890,000đ



Khuyến mãi:

Để lại số điện thoại, chúng tôi sẽ tư vấn cho Quý khách!
Đánh giá & Nhận xét về Mainboard Gigabyte Z790 D DDR4

0

0 Đánh giá
  • 5
    0
  • 4
    0
  • 3
    0
  • 2
    0
  • 1
    0

Bạn đã dùng sản phẩm này?

Gửi nhận xét của bạn
Hủy
Hỏi và đáp (0)
Thông số kỹ thuật
Tên Hãng Gigabyte
Model Z790 D DDR4
CPU hỗ trợ Intel
Chipset Z790
RAM hỗ trợ Support for DDR4 5333(O.C.)/ DDR4 5133(O.C.)/DDR4 5000(O.C.)/4933(O.C.)/4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 3000 / 2933 / 2800 / 2666 / 2400 / 2133 MHz memory modules
4 x DDR DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
Khe cắm mở rộng CPU:
1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16)
Chipset:
1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4)
1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x1 (PCIEX1_4)
2 x PCI Express x1 slots, supporting PCIe 3.0 and running at x1 (PCIEX1_2, PCIEX1_3)
Ổ cứng hỗ trợ CPU:
1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)
Chipset:
2 x M.2 connectors (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2Q_SB, M2P_SB)
6 x SATA 6Gb/s connectors
Cổng kết nối (Internal) 1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x 4-pin ATX 12V power connector
1 x CPU fan header
1 x water cooling CPU fan header
3 x system fan headers
1 x system fan/water cooling pump header
2 x addressable LED strip headers
2 x RGB LED strip headers
3 x M.2 Socket 3 connectors
6 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x S/PDIF Out header
1 x USB Type-C® header, with USB 3.2 Gen 1 support
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
1 x serial port header
2 x Thunderbolt™ add-in card connectors
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
1 x reset button
1 x Q-Flash Plus button
1 x reset jumper
1 x Clear CMOS jumper

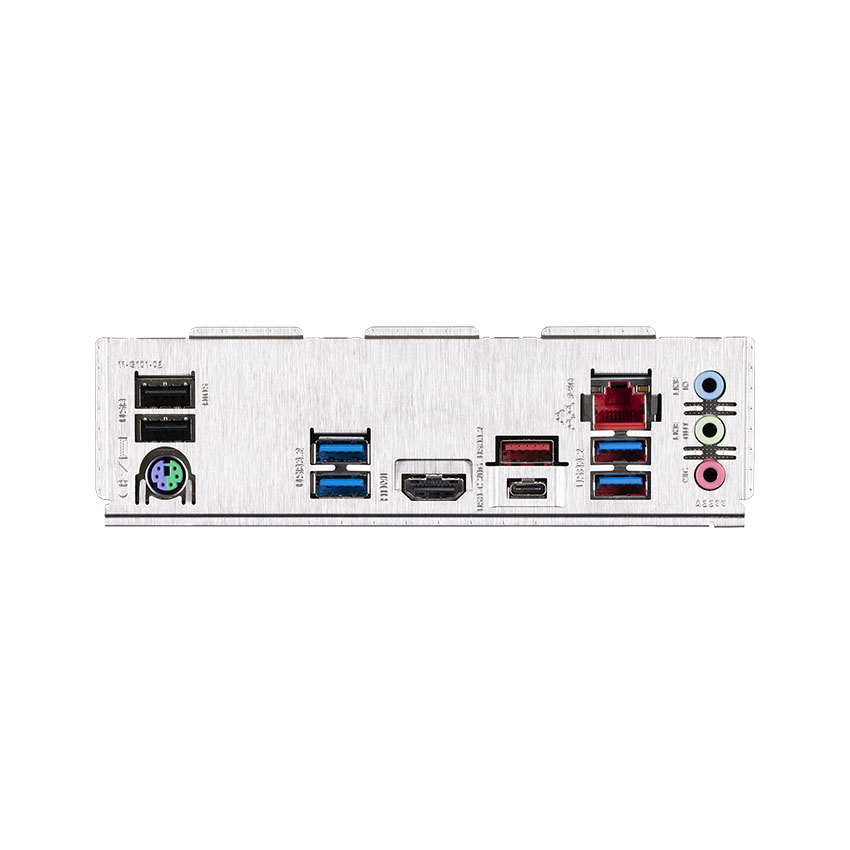

Cổng kết nối (Back Panel) 1 x USB Type-C® port, with USB 3.2 Gen 2x2 support
1 x USB 3.2 Gen 2 Type-A port (red)
4 x USB 3.2 Gen 1 ports
2 x USB 2.0/1.1 ports
1 x HDMI 2.0 port
1 x RJ-45 port
3 x audio jacks
LAN / Wireless Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Kích cỡ ATX Form Factor; 30.5cm x 24.4cm
